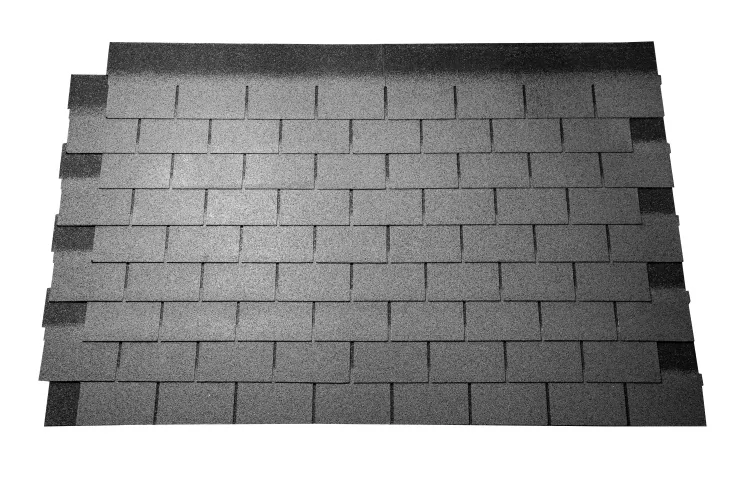

SİM Shingle Square (Quadrangular)
Durable and aesthetic SİM Shingle provides a long-lasting,…
SİM Shingle – Modern and Durable Roofing Solution
SİM Shingle (Self-Adhesive, Break-Resistant Shingle) is a reliable solution for modern roofing with its bitumen-based structure. One surface is coated with an aesthetically appealing colored mineral layer for visual enhancement, while the other surface is covered with a removable polyethylene film to facilitate easy application.
The Atactic Polypropylene (A.P.P.) additive used in production increases the durability of the bitumen, and the fiberglass reinforcement strengthens its mechanical performance. These features provide long-lasting, safe, and aesthetically pleasing performance on roofs.

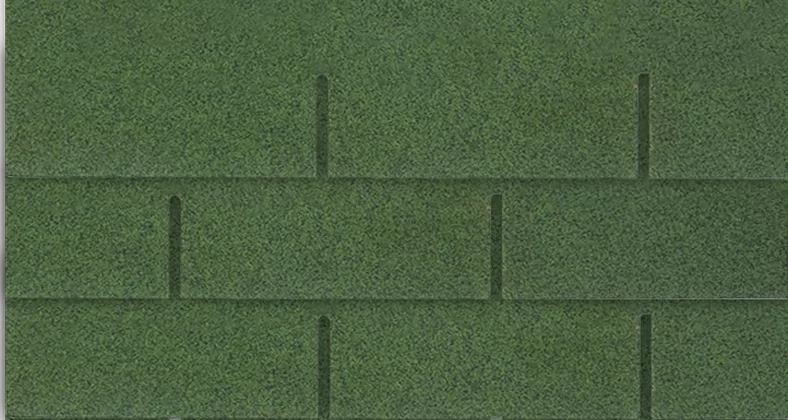

SİM Shingle is available in classic (rounded), hexagonal (honeycomb), effect, and square (quadrangular) patterns, produced in various color options to suit different architectural designs.
SİM Shingle Features
-
Weather Resistant: Provides superior resistance against harsh weather conditions.
-
Complete Waterproofing: Its waterproof structure ensures safe and full protection on roofs.
-
Wide Application Range: The colored mineral-coated surface delivers high performance and aesthetic appeal on wooden, reinforced concrete, and metal roofs.
-
Strong Adhesion: Adheres perfectly to the application surface and maintains this property over time.
-
Flexible and Durable: Longitudinal and transverse tensile strength provides necessary elasticity against structural movements and expansion differences.
-
UV and Temperature Resistance: Colored minerals protect the membrane from UV rays, melting at high temperatures, and cracking at low temperatures, extending the product’s lifespan. Ideal for top-layer applications requiring UV resistance.
-
Easy and Practical Application: Can be quickly applied using a torch flame and easily cut to the desired size and shape with special cutting tools.
SİM Shingle Applications
-

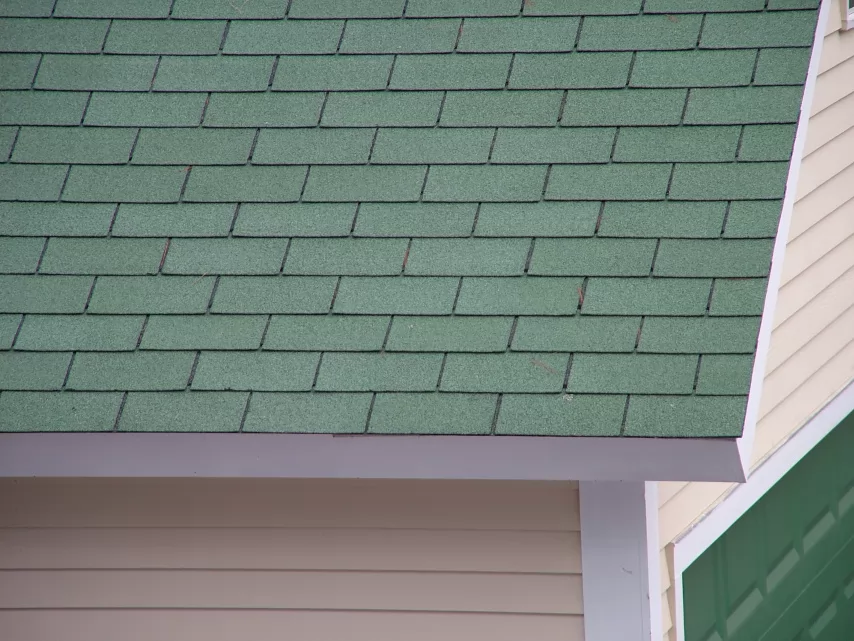

Wooden, reinforced concrete, and metal roofs
-
Inaccessible terraces and garden roofs
-
Domed and vaulted roof systems
-
Gazebos and pergolas
-
Garden sheds
-
Awnings
-
Challenging detailed areas such as chimney bases, parapet turns, gutters, concealed valleys, and expansion joints
SİM Shingle (Self-Adhesive, Break-Resistant Shingle) adapts to various architectural details, serving as a top-layer roofing material and providing economical, aesthetic, and long-lasting solutions for roofs.
Packaging
SİM Shingle (Self-Adhesive, Break-Resistant Shingle) is manufactured with a width of 32 cm and a length of 1 m.
Storage
Bituminous roofing sheets should be stored in covered, dry areas.
Pallets must be stored in a single layer and should not be stacked.
Products should be protected from ultraviolet rays and sudden temperature changes.
Application
Waterproofing applications using bituminous sheets should be carried out at temperatures of +5 °C and above, in dry weather, and on dry surfaces.
Application surfaces must be smooth, even, and clean, free from oil, diesel, or any substances that could damage the waterproofing layer.
Approvals / Standards
SİM Shingle is manufactured in accordance with the TS EN 13707 standard and carries the CE marking.
Technical Information – SİM Shingle (Self-Adhesive, Break-Resistant Shingle)
| Test | Test Method | Declared Values | Unit | Tolerance |
|---|---|---|---|---|
| Width | EN 544 | 320 | mm | ± 3 |
| Length | EN 544 | 1000 | mm | ± 3 |
| Tensile Strength (Transverse) | EN 12311-1 | ≥ 400 | N/50 mm | ≥ 400 |
| Tensile Strength (Longitudinal) | EN 12311-1 | ≥ 600 | N/50 mm | ≥ 600 |
| Softening Point at High Temperature | EN 1110 | ≤ 2 (at 90 °C) | mm | ≤ 2 |
| Tear Resistance | EN 12310-1 | ≥ 100 | N | ≥ 100 |
| Water Absorption | EN 544 | < 2 | % | < 2 |
| UV Radiation Resistance | EN 1297 | Pass | – | Pass |
| Granule Adhesion | EN 12039 | ≤ 2.5 | g | ≤ 2.5 |
| Bitumen Mass | EN 544 | ≥ 1300 | g/m² | ≥ 1300 |
| Fire Performance | EN 13501-5 | Class E | – | Pass |
| External Fire Performance | ENV 1187 | B ROOF | – | Pass |
